Cross Roller Linear Stage

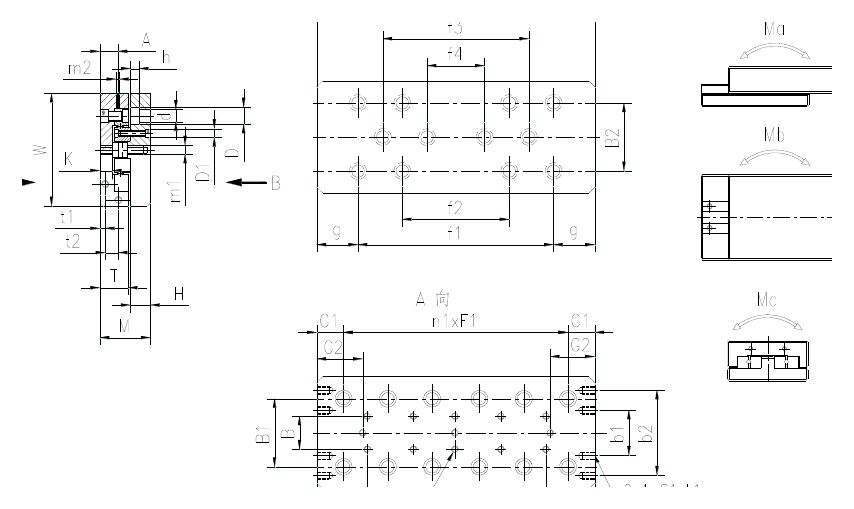

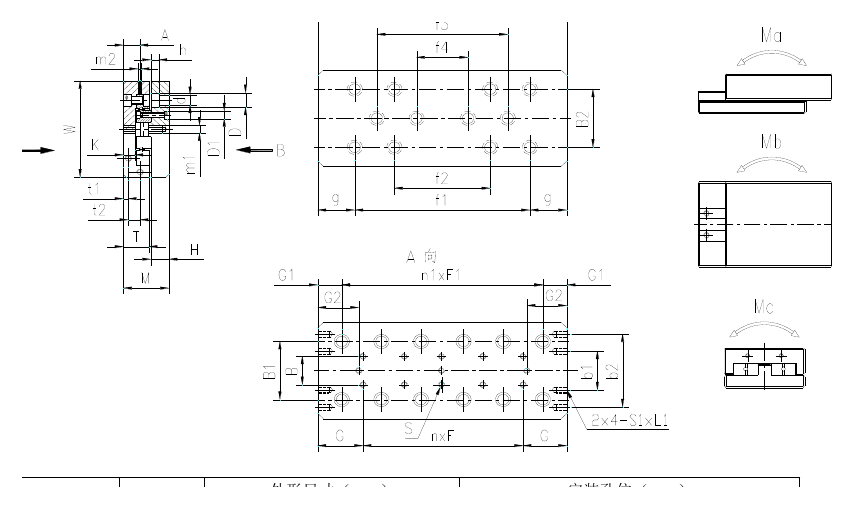

CRU cross roller linear stages cover CRU3xxx, CRU4xxx and CRU6xxx series. The lineup provides outline dimensions, mounting holes, side dimensions, base mounting, roller count, rated load, static moment and accuracy references for precise rapid reciprocating linear motion.

Features

CRU cross roller linear stages are designed for precise and rapid reciprocating linear motion.
The lineup covers CRU3xxx, CRU4xxx and CRU6xxx series, with stroke ranges from 30 mm to 265 mm.
The series is compatible with THK and IKO products.

CRU cross roller linear stage lineup:

Series	Models	Stroke / Main Size	Load / Moment Range	Notes
CRU3xxx	CRU3055, CRU3080, CRU3105, CRU3130, CRU3155, CRU3180, CRU3205	Stroke: 30-130 mm W: 60 mm; M: 28 mm L: 55-205 mm	C: 1.47-4.22 kN C0: 1.67-7.16 kN Ma/Mb/Mc: 9.85-120 / 6.54-107 / 15.5-66.8 N.m	Compact cross-roller stage series; mounting pitch uses 25 mm increments.
CRU4xxx	CRU4085, CRU4125, CRU4165, CRU4205, CRU4245, CRU4285	Stroke: 50-185 mm W: 80 mm; M: 35 mm L: 85-285 mm	C: 3.5-11 kN C0: 5-21 kN Ma/Mb/Mc: 48.7-468 / 33.7-418 / 64-278 N.m	Mid-size cross-roller stage series; mounting pitch uses 40 mm increments.
CRU6xxx	CRU6110, CRU6160, CRU6210, CRU6260, CRU6310, CRU6360, CRU6410	Stroke: 60-265 mm W: 100 mm; M: 45 mm L: 110-410 mm	C: 7.5-23 kN C0: 11-46 kN Ma/Mb/Mc: 121-1480 / 80.5-1320 / 158-688 N.m	Large cross-roller stage series; mounting pitch uses 50 mm increments.
